In recent years, with the frequent occurrence of online gambling and online fraud cases, database forensics is becoming more and more important. Because a large amount of evidence is stored in the database, thus the database analysis & database forensics plays a vital role in helping investigators to quickly extract accurate data involved in the case (such as: members who participate in online gambling , profit table, personnel organization structure table, network platform capital flow table, etc.), and accurately crack down on Internet crimes.

Steps for Database Analysis in a Case

There is an existing website database (MySQL database data file) involved in the case, which needs to be analyzed according to the following requirements to obtain relevant data:

Inspection Material: data.7z

Analysis Tool: DBF Database Forensic Analysis System

Step 1. Unzip the inspection material file and obtain the MySQL database file “data”.

Step 2.  Find information about the suspect named Aaron

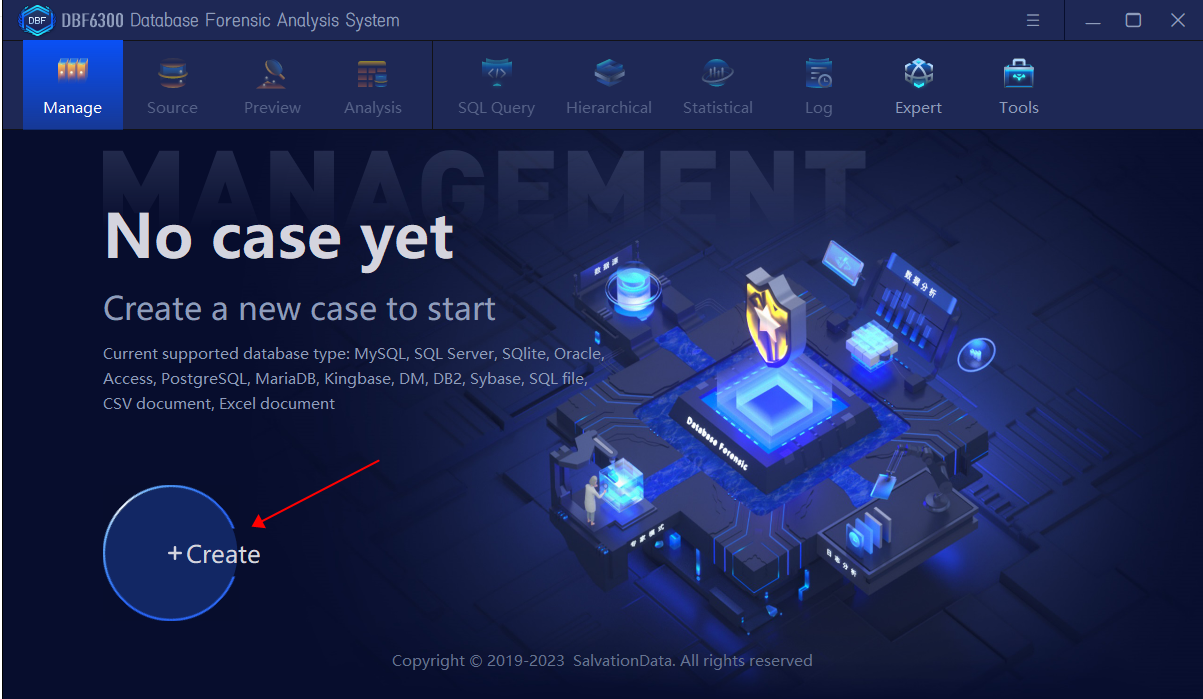

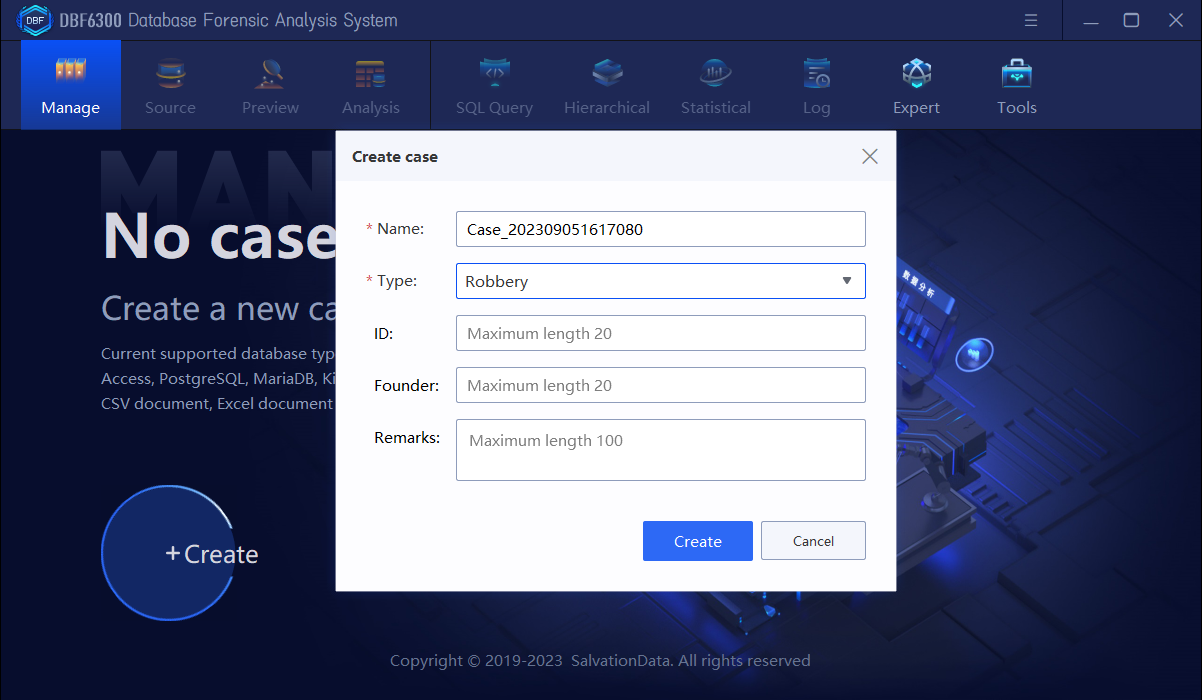

1.Open the DBF6300 Database Forensic Analysis System, click “Create” to create a new case and then input the basic case information.

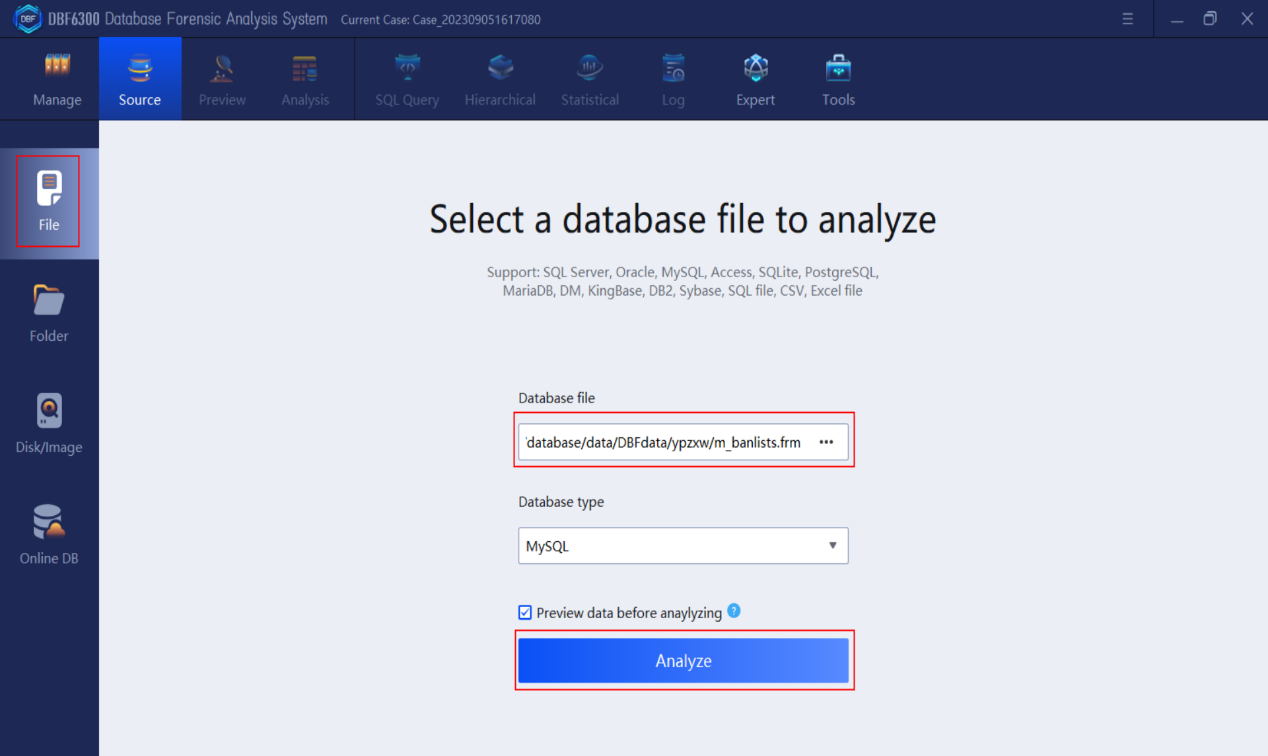

create-a-new-case2. Select the database file for database analytics.

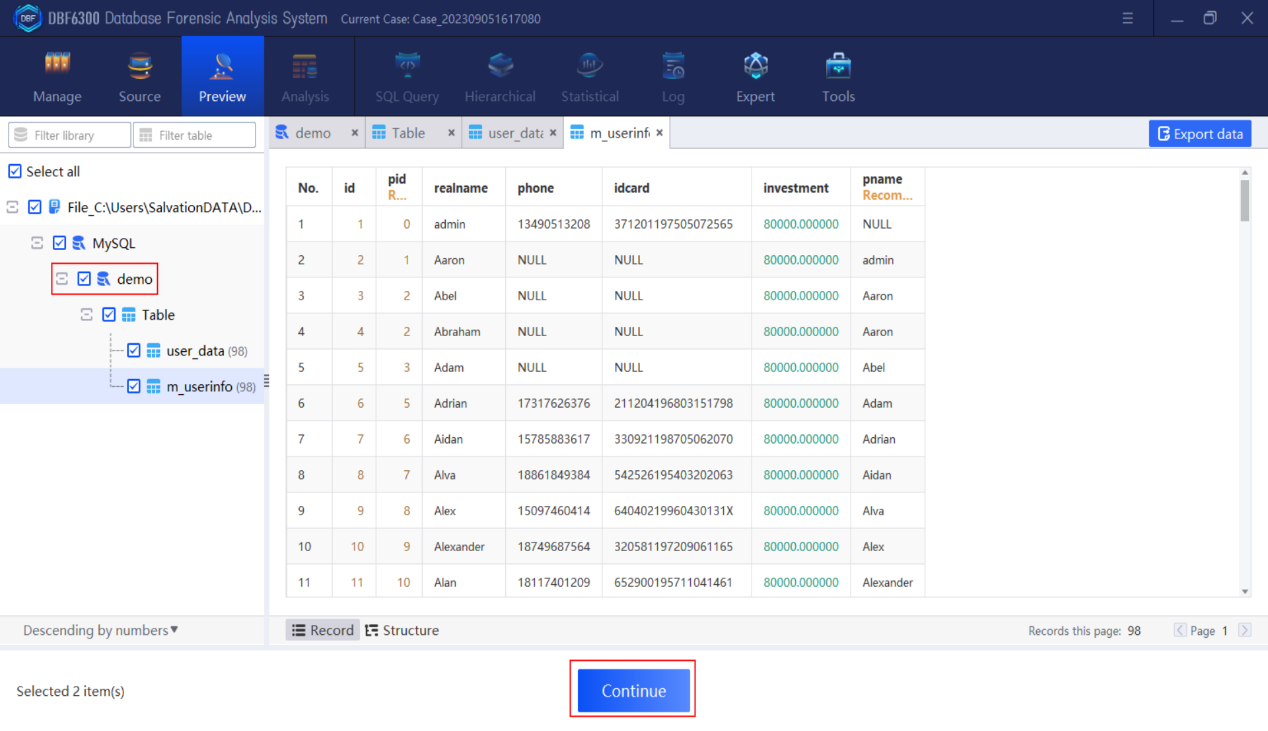

select-a-database-file-to-analyze3.Check the database involved in the case which needs to be analyzed, and click “Continue” to proceed to the database analysis interface.

continue-to-proceed4. Query all information related to the suspect person involved through “Key Search”.


Step 3.  Export the table which stores the information of the suspects involved in the case (including member ID, referrer ID, name, mobile phone number, certificate number, investment points, referrer username).

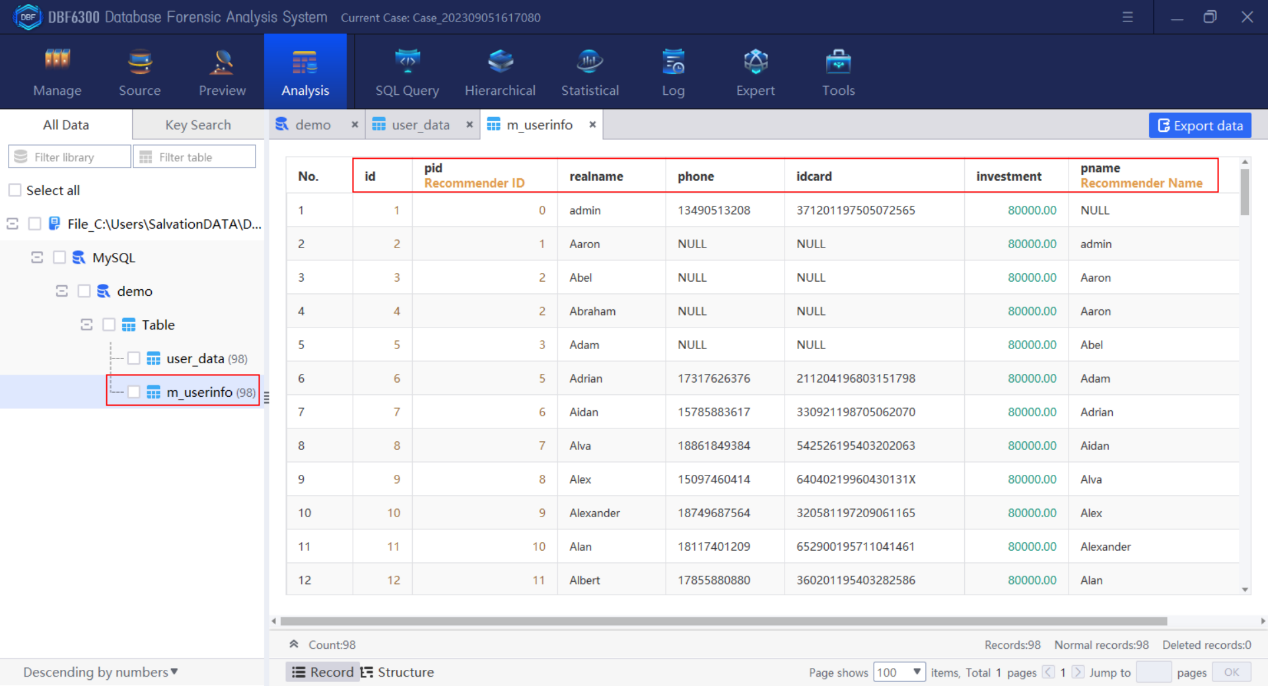

1.By checking the table information, find all field information contained in table “m_userinfo”.

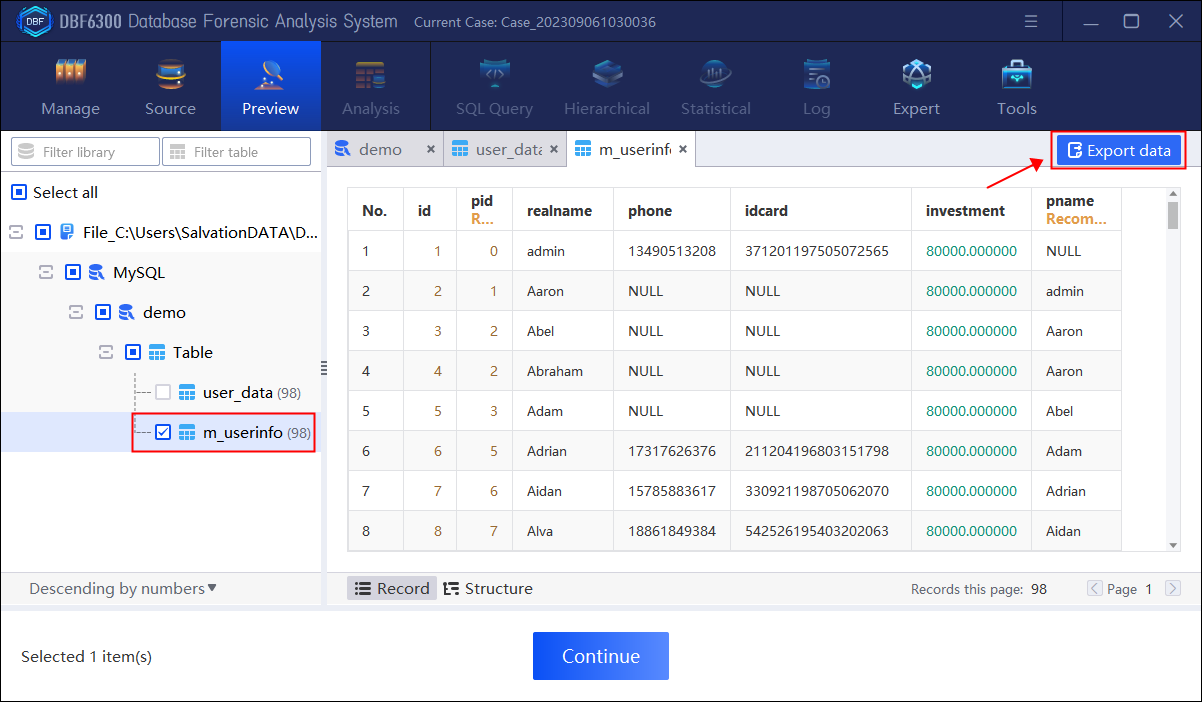

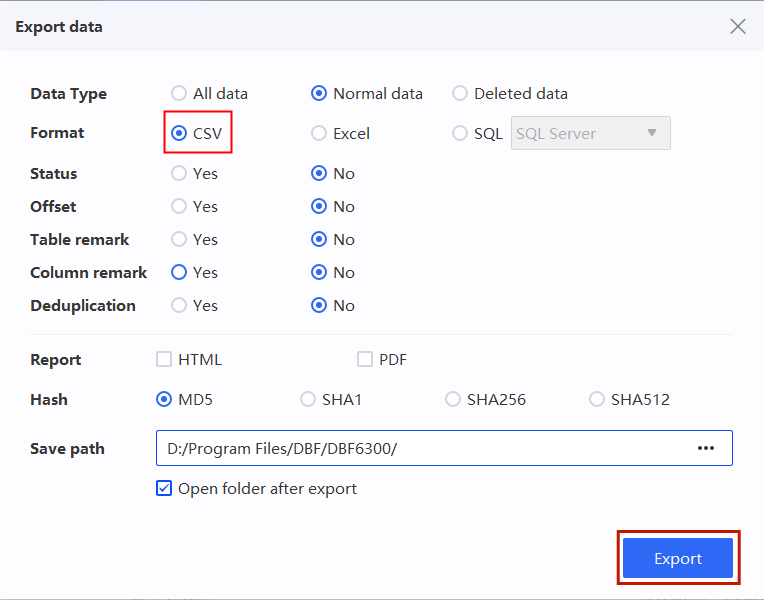

check-the-table-information2.Select the table “m_userinfo” to export directly. We can choose the export option according to actual needs.



Step 4. Analyze the personnel organizational structure of the platform, and display the hierarchical map with username node.

Firstly, we should analyze the table containing the superior-subordinate relationship field and user name field. Here we need to operate the relational query between the table “m_userinfo” and “m_userdata” to obtain the required table, and then perform hierarchical analysis according to the obtained table.

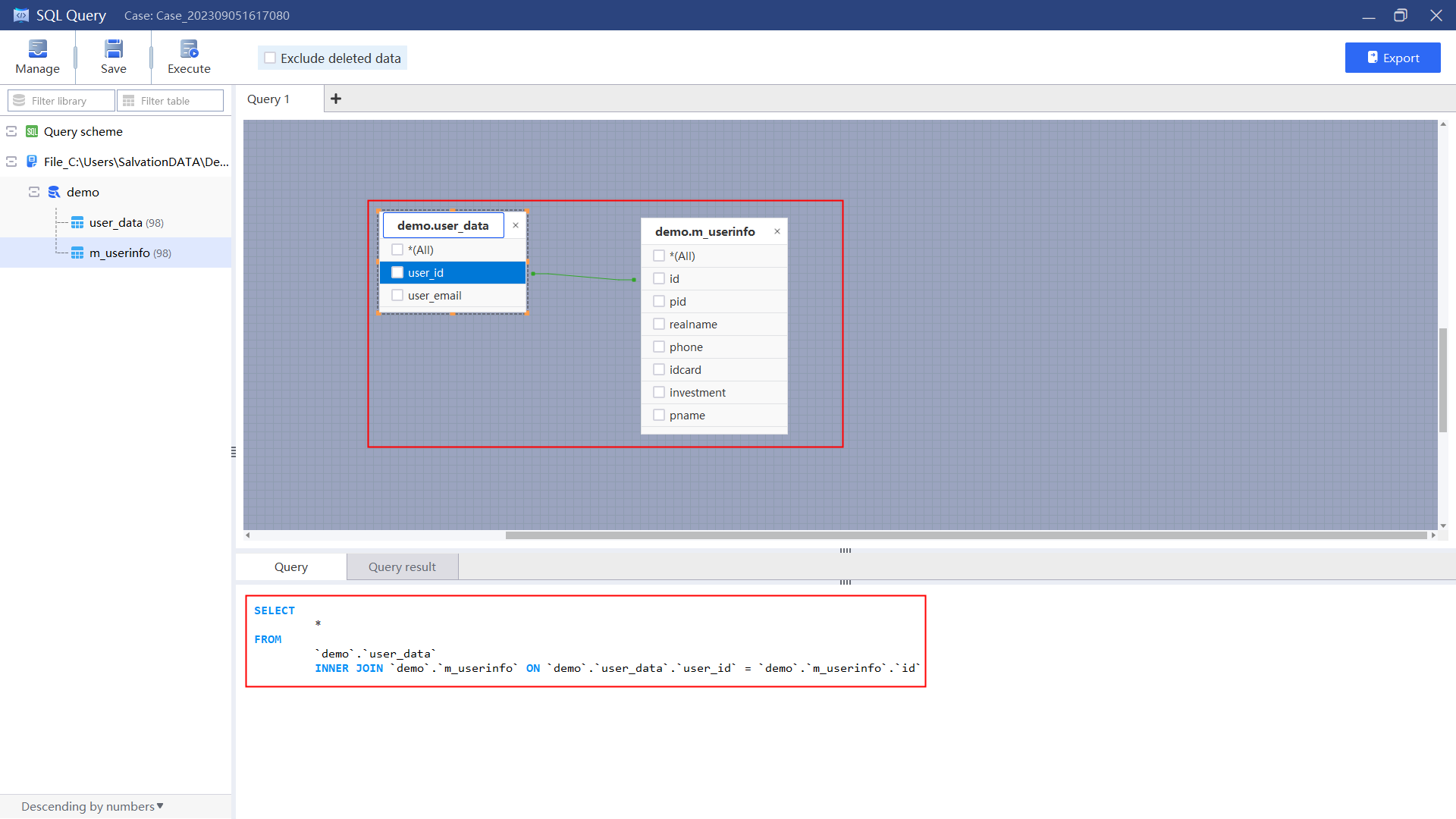

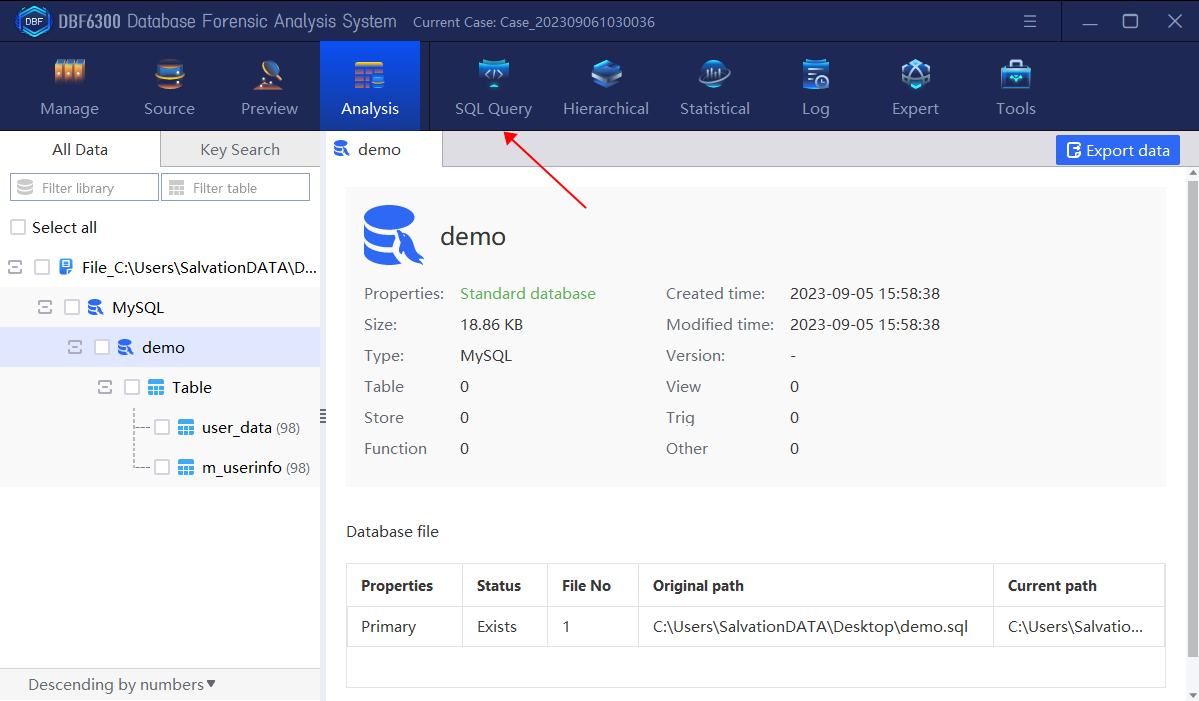

1.Select “SQL Query”, add table “m_userinfo”and “m_userdata”, select fields with the same meaning to associate.

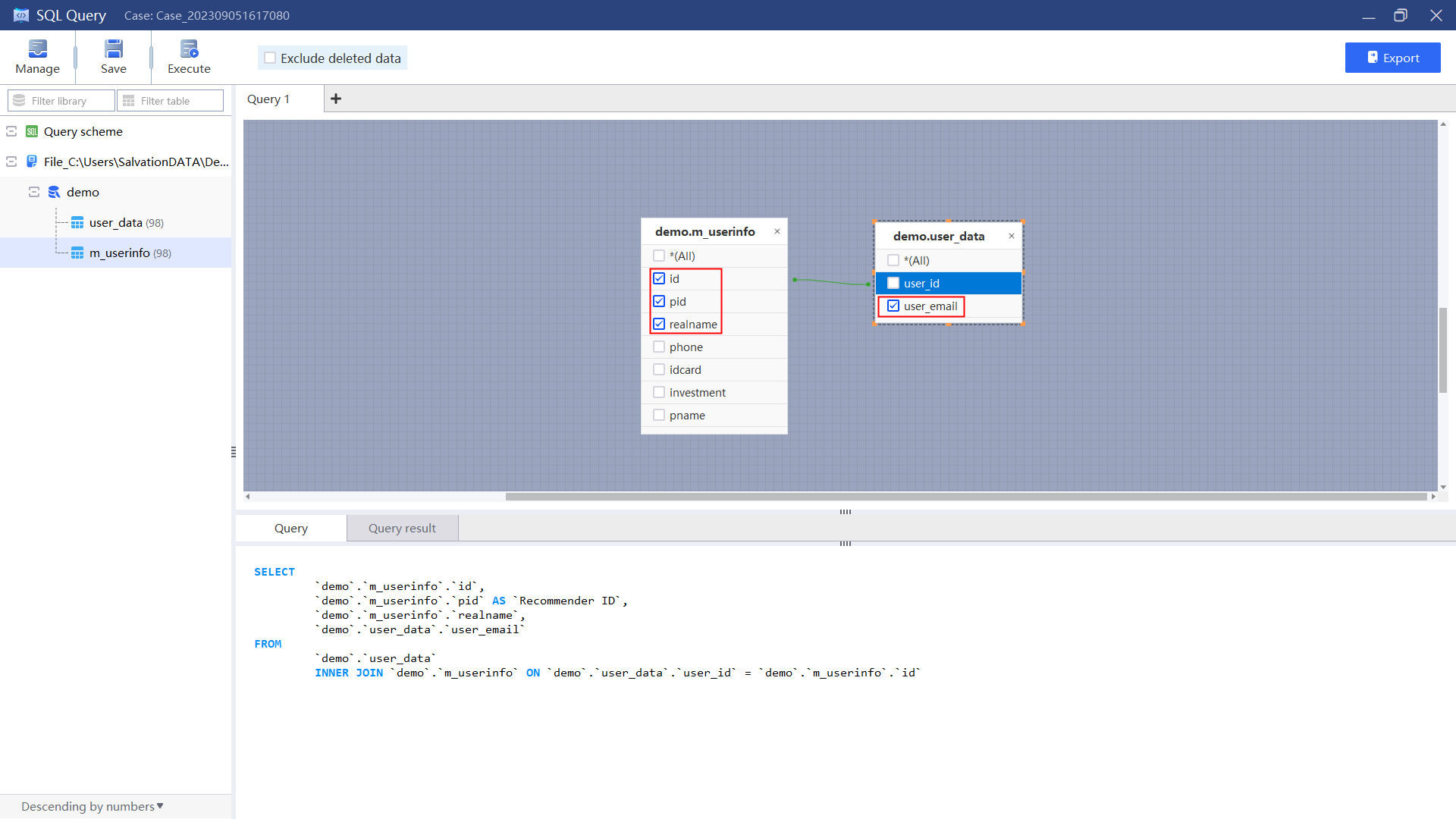

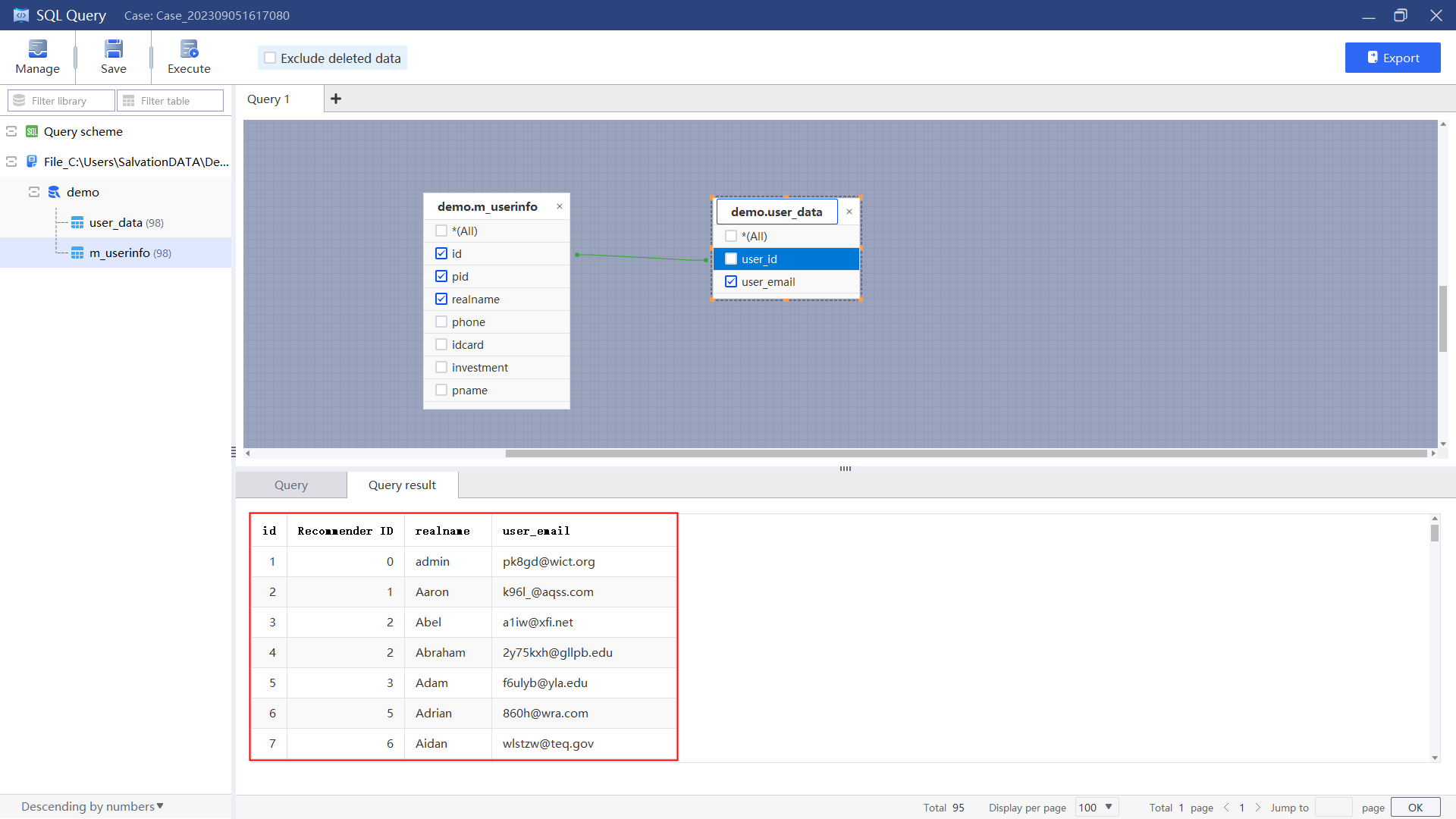

2.Select the fields to be included and execute the query.

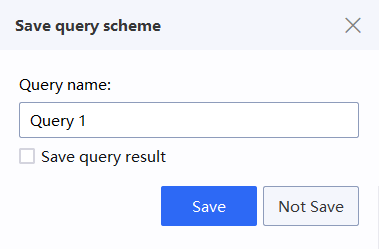

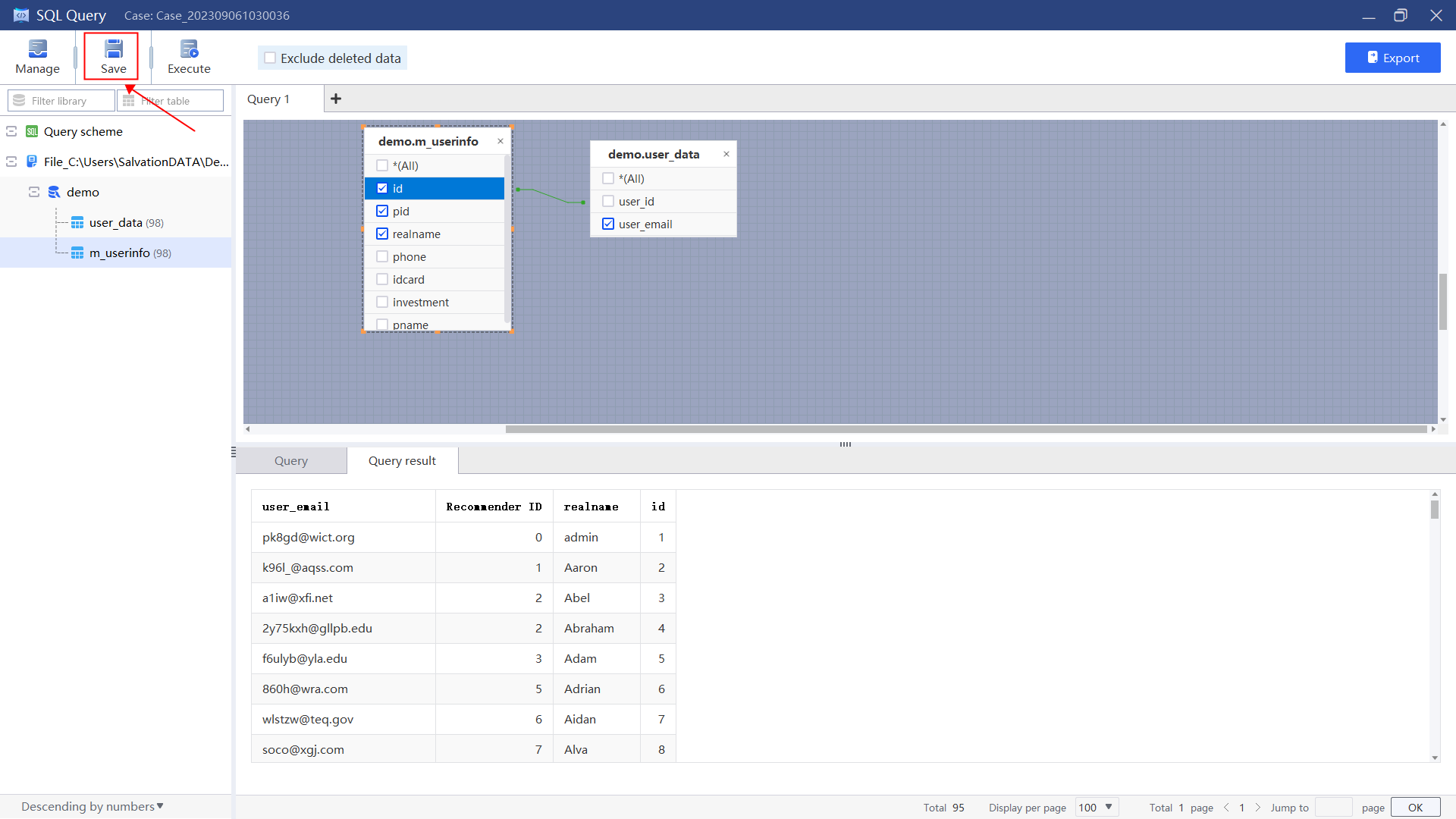

3.Save the query result for hierarchical analysis.

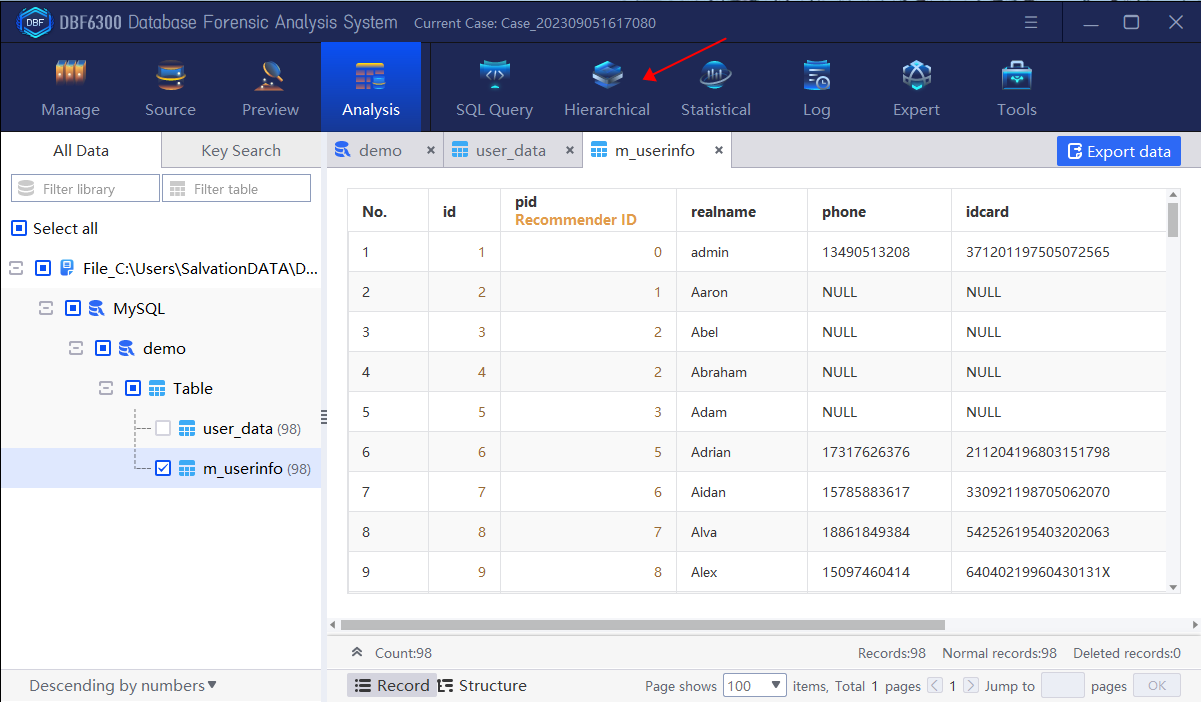

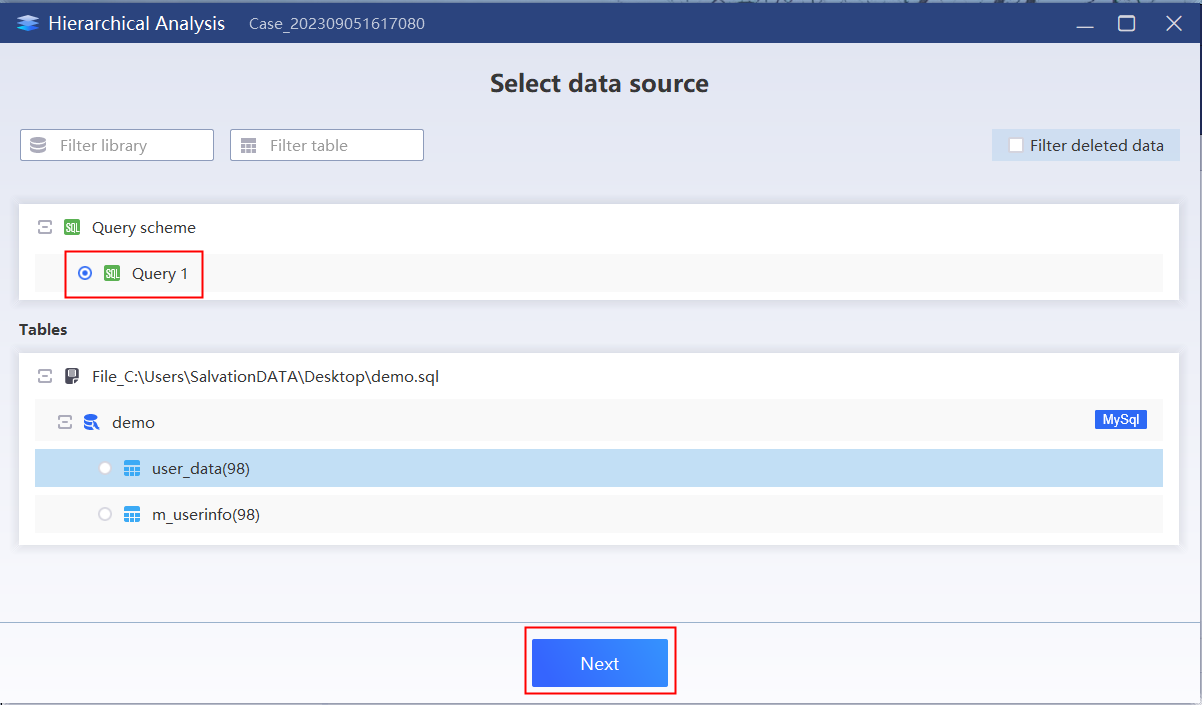

4.Select the “Hierarchical”, check the previously saved query result,and click “Next”.

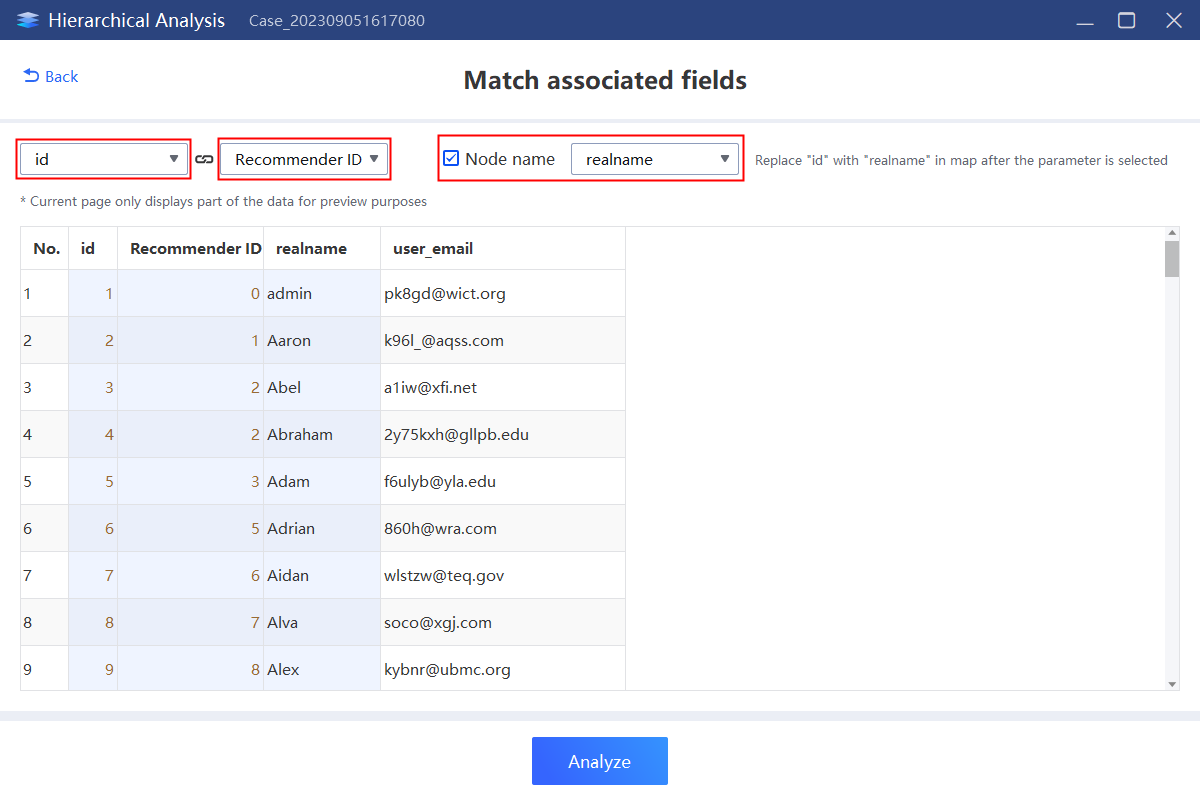

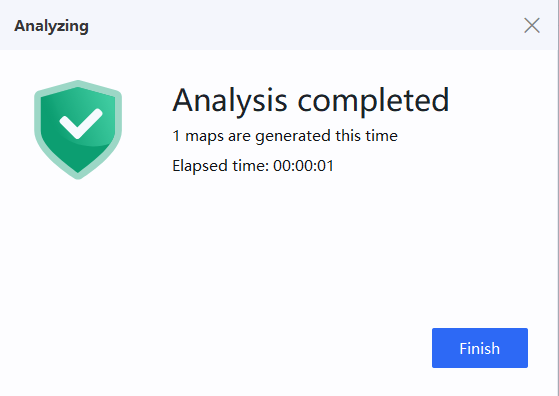

select-data-source5.Set the node field to “id”, set the superior node field to “Referrer ID”, check the box “Node name” to replace “Node filed” with “node name replace filed” in map, and click “Analyze”.

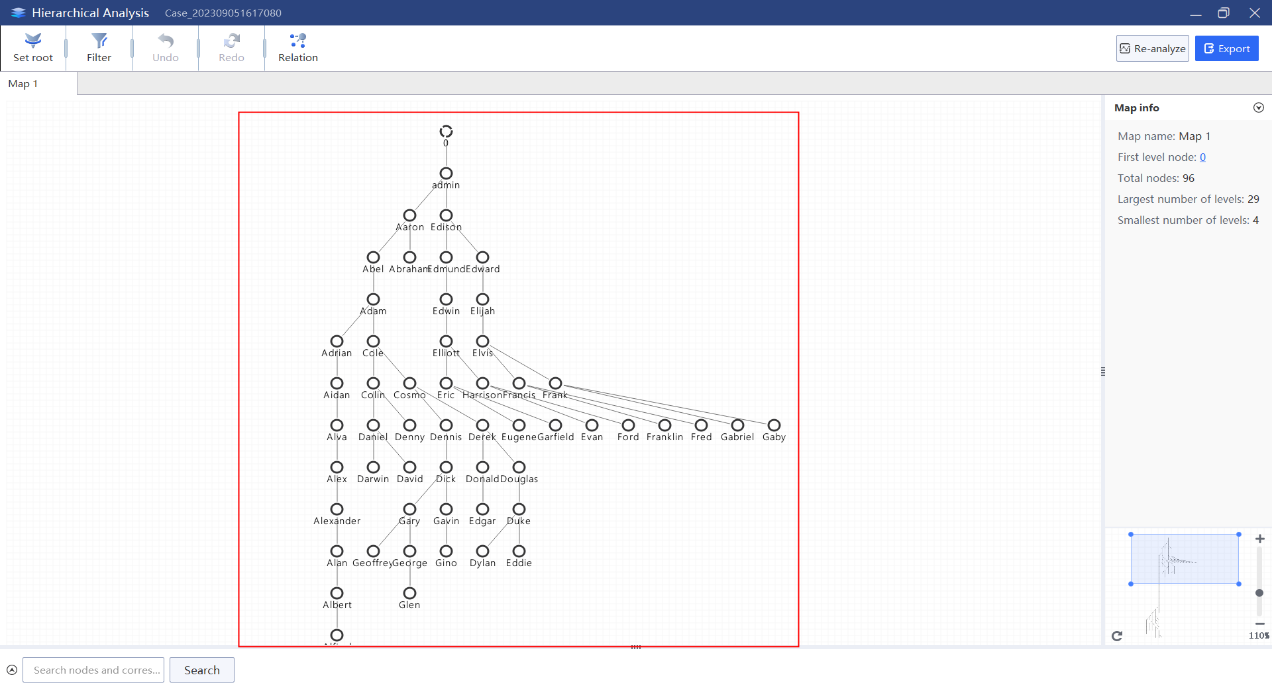

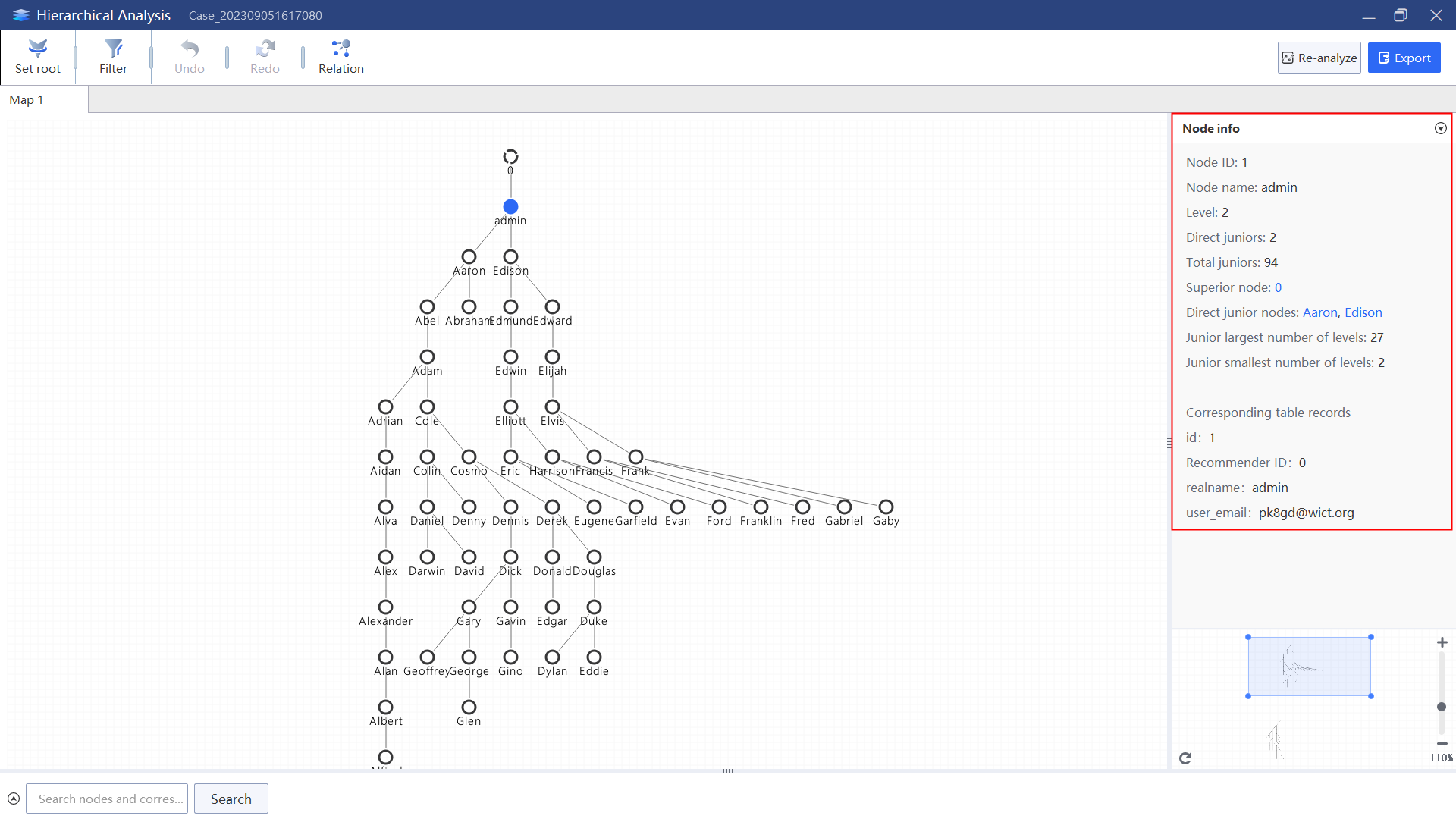

6.Through the database analysis map, the organization level and personnel size information can be obtained.


Step 5.  Analyze the possible access password of the database

Add database log for analysis to check if there is a statement for setting a password, which can be achieved by using keyword “password” to query.

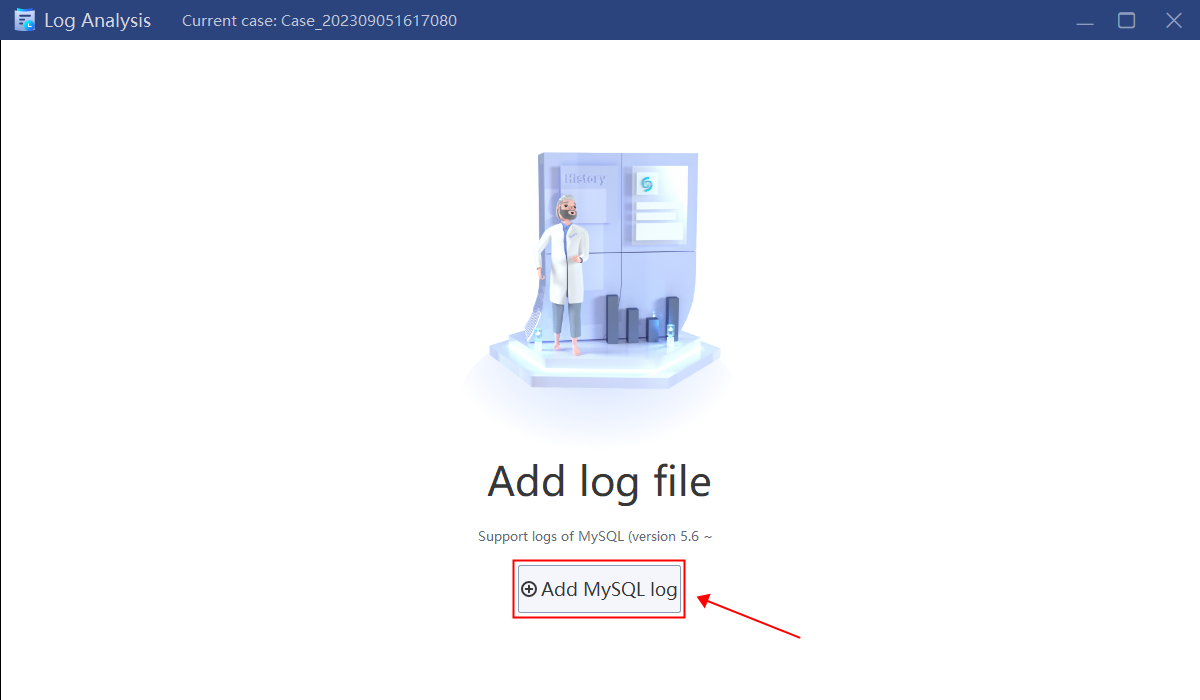

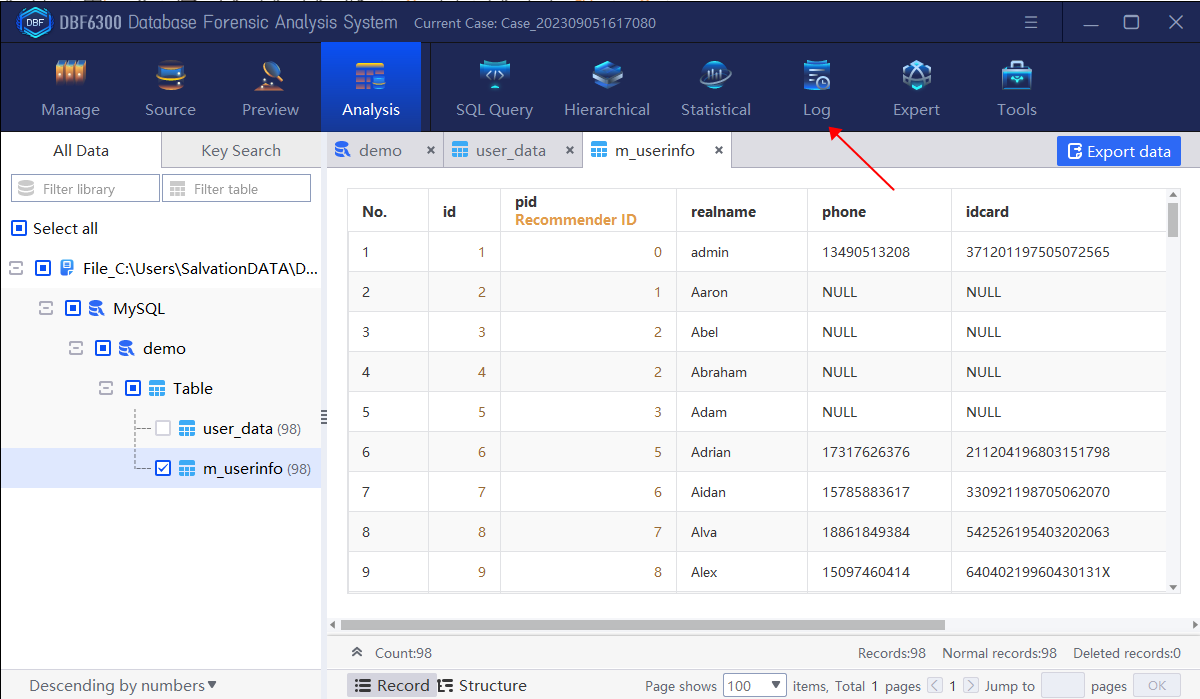

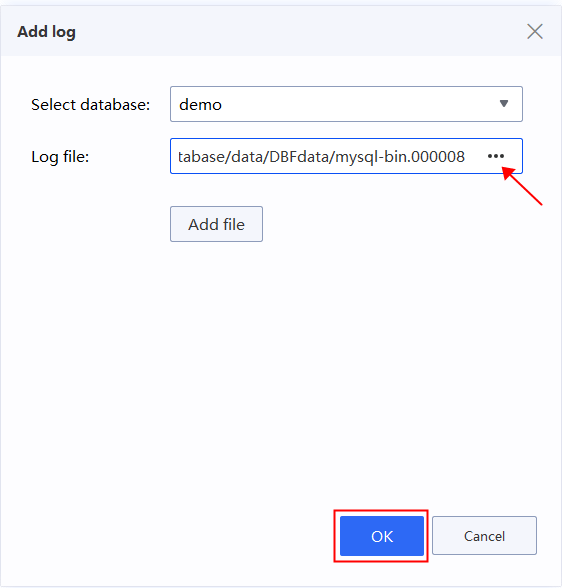

1.Return to the main interface, click “Log” and add log file of the database for current case.

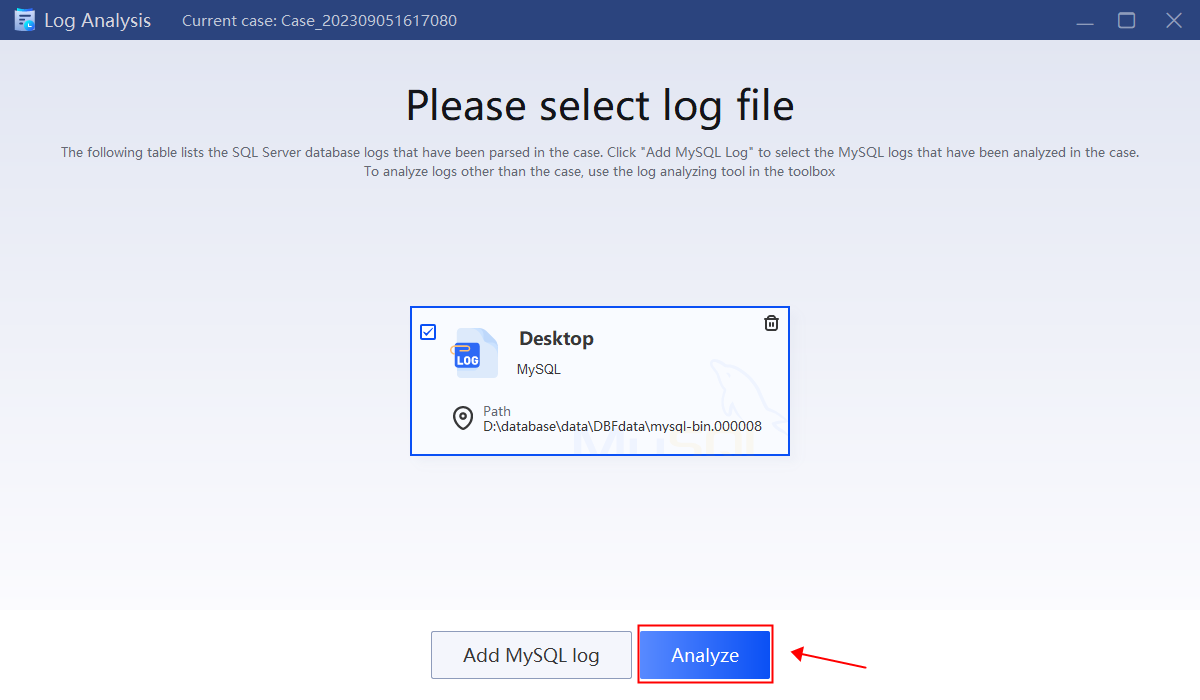

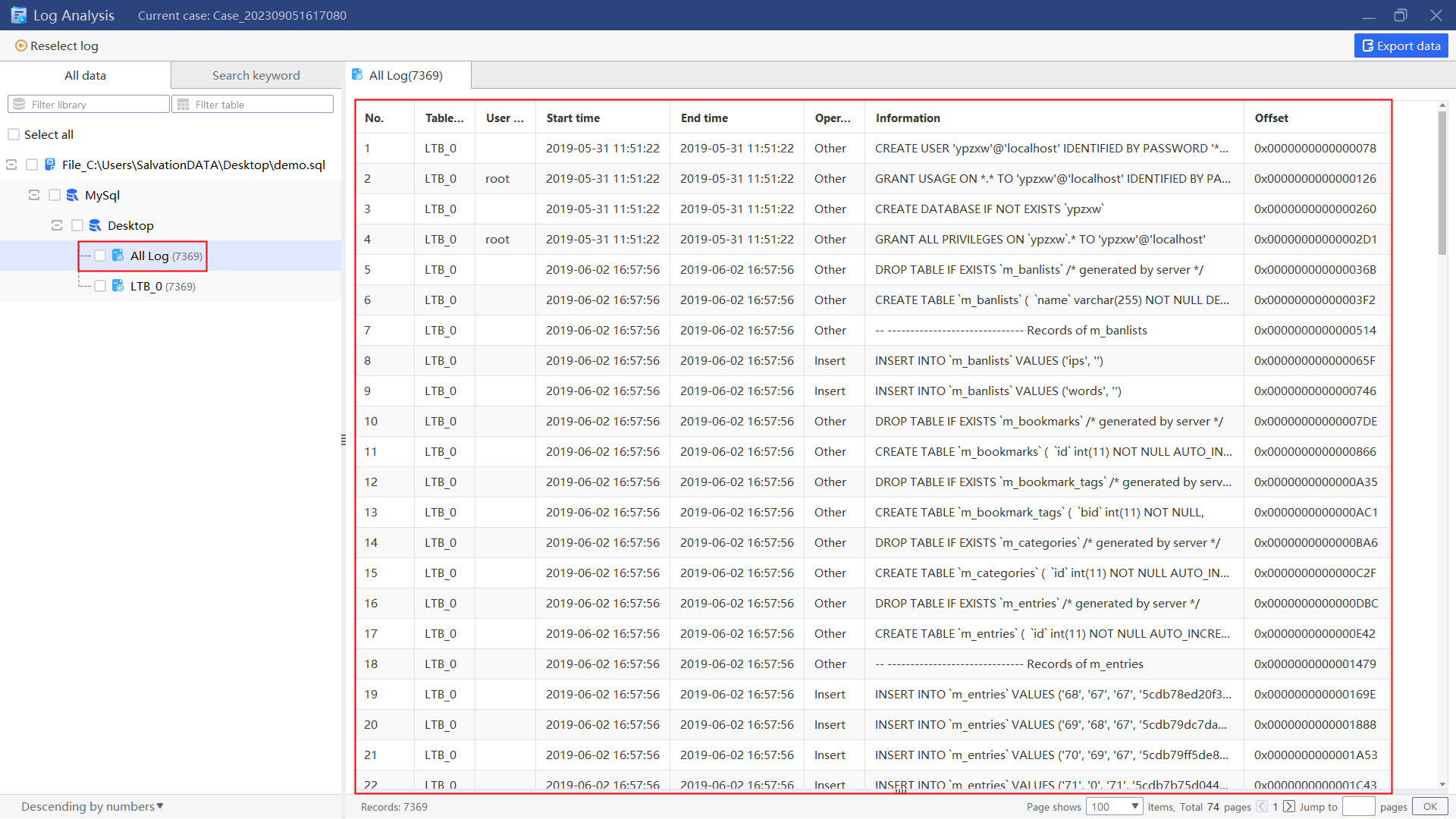

2.Select the log file to analyze.

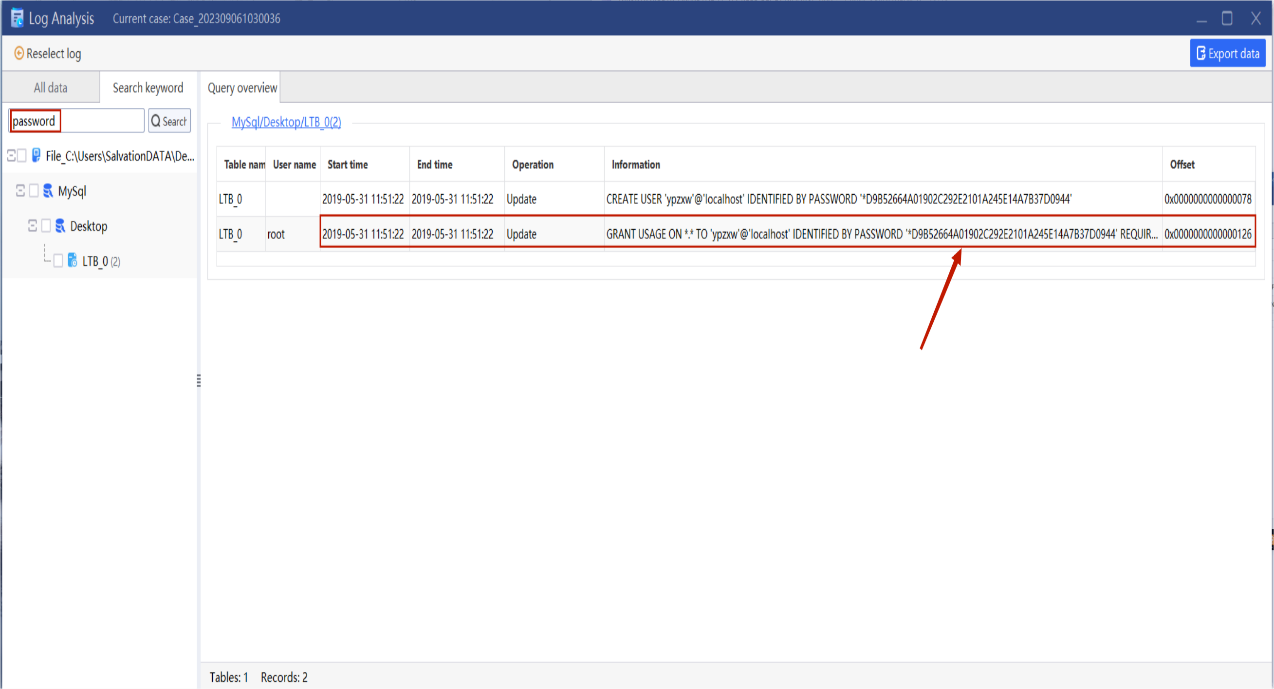

all-log3.Quickly locate relevant information through “Search Keyword’, and then confirm the latest changed data based on the time range.



  1. Before conducting database analysis, it is necessary to clarify the meaning of the database, the tables and the fields.
  2. For log analysis, in addition to the logs recording additions, deletions, checks, and modifications in the case, there are also logs related to database access, management, etc., which also need to be analyzed when necessary.
  3. For cloud database backup files of some cloud platforms, due to their special format, format conversion may be required in advance.
  4. Database analysis is not limited to the database itself. Many cases also require local restoration of the database and network system.
