SSD Data Recovery: Strategies for Retrieving Lost Information

Understanding SSD Data Loss

Common Causes of Data Loss in SSDs

Data loss on SSDs typically comes down to a handful of causes: hardware failure, file system corruption, and accidental deletion. Hardware issues often trace back to wear on the NAND flash memory itself, while software-side problems usually involve corruption within the SSD’s file system. Accidental deletion remains one of the most common causes overall, and it’s rarely a technology problem — just human error.

Why SSD Recovery Is Harder Than HDD Recovery

Recovering data from an SSD isn’t the same challenge as recovering it from a traditional hard drive. TRIM — a feature built into SSDs to maintain performance by proactively clearing blocks marked for deletion — means deleted data can be permanently gone far sooner than it would be on an HDD. Many SSDs also use built-in encryption, which adds another layer of complexity to any recovery attempt. Together with how SSD controllers manage wear leveling and garbage collection internally, these factors are why SSD recovery generally calls for more specialized tools and expertise than HDD recovery does.

For a deeper technical breakdown of TRIM, garbage collection, and controller-level wear leveling, see our dedicated guide: Why SSD Recovery Is Harder Than HDD.

Types of SSD Data Recovery

SSD data recovery generally falls into two categories, and figuring out which one applies to your situation is the first real step toward getting data back.

• Logical Data Recovery

Logical recovery is the first line of defense, and it’s a software-based approach rather than a hardware fix. It applies when the SSD itself is physically fine, but data is inaccessible due to corruption in files, partitions, or the file system. With the right recovery software, previously inaccessible data — deleted files, broken file systems, formatted drives — can often be restored without ever opening the drive itself.

• Physical Data Recovery

Physical recovery comes into play when the drive has sustained actual physical damage or wear that logical methods can’t work around. This typically requires a lab environment, where specialists can work directly with the NAND flash chips — sometimes resoldering them onto a donor SSD, or reading data straight from the chips with specialized equipment. This is a fundamentally different skill set from software recovery, and it’s why physical recovery cases are handled by specialists rather than consumer tools.

Engineer Note: Imaging the SSD before attempting any recovery is generally safer than working directly on the original drive — some recovery operations can permanently alter data that would otherwise still be recoverable.

Both approaches point to the same underlying reality: SSD recovery is genuinely more complex than HDD recovery, and knowing which category your situation falls into determines which path is actually worth pursuing.

SSD Recovery Workflow: What the Process Actually Looks Like

Choosing a recovery method is only useful once you know where you are in the process. In practice, SSD recovery follows a consistent sequence regardless of the underlying cause:

Diagnose → Image → Recover → Verify

The four-step SSD recovery process, from diagnosis to verification

1. Diagnose— Confirm whether the SSD is detected by the system at all, and whether the issue looks logical (corrupted files, a missing partition) or physical (the drive isn’t recognized, makes unusual behavior, or has visible damage).
2. Image— Before any recovery attempt, create a full image of the drive. This step matters regardless of which recovery path you take next, since it protects the original data from further changes.
3. Recover— Run logical recovery software against the image for software-side issues, or hand the drive to a lab for physical-level recovery if the diagnosis points that way.
4. Verify— Check recovered files for completeness and integrity before considering the recovery complete — a file that “recovers” but won’t open wasn’t actually recovered.

Decision Guide: Matching Symptoms to the Right Recovery Path

Recovering Data from an SSD

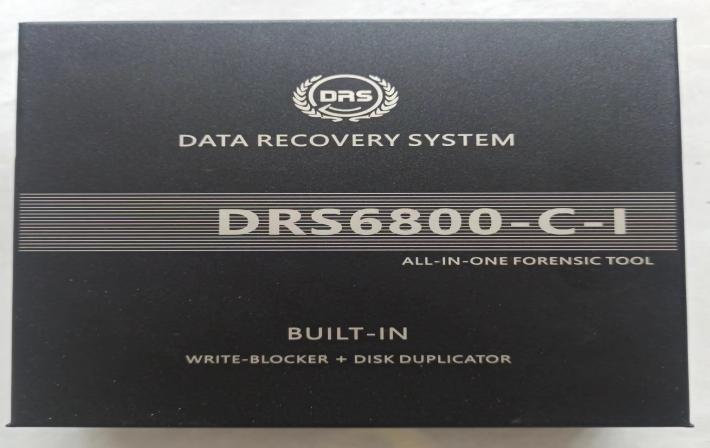

When logical recovery software isn’t enough — or when the drive shows signs of physical damage — this is where forensic-grade tools make the difference. SalvationDATA’s DRS Data Recovery System is built to handle both ends of that spectrum:

• Advanced imaging toolscreate a full disk image before any recovery work begins, so recovery is performed on a copy rather than the original media — preserving the source data throughout the process.
• Wide storage supportextends beyond SSDs to HDDs, SD cards, and USB drives, so the same system can handle mixed-media cases rather than requiring a different tool per device type.
• Broad file system supportensures recovered data stays usable across different operating systems and formats, rather than being tied to one platform.

For cases involving physical damage — failed NAND chips, a non-responsive drive, or wear-related failure — this is exactly the scenario forensic-grade recovery exists for. Software alone can restore a corrupted file system, but it can’t repair or extract data directly from a damaged chip; that requires the lab-level techniques described above. Contact our forensic engineering team → for cases that go beyond what recovery software can handle.

Protecting Your Data During SSD Recovery

Getting the best outcome from an SSD recovery attempt comes down to a few consistent principles.

1. Create Backups Before You Need Them

Regular backups are the single most effective safeguard against data loss — a recent backup means a failed drive is an inconvenience, not a crisis. It’s the most foundational step here, and the one that makes every other step on this list unnecessary if it’s already in place.

2. Stop Using the Drive Immediately

If data loss has already happened, stop using the drive right away, before attempting anything else. Continued writes to the SSD can overwrite exactly the data you’re trying to recover, and each additional write reduces the odds of a full recovery. Disconnect the drive and don’t reconnect it until you’re ready to begin recovery — ideally with a specialist.

3. Match the Recovery Method to the Actual Problem

Software-based recovery is typically sufficient for logical issues — file corruption, accidental deletion, a corrupted partition. But when the SSD has physical damage or component failure, software can’t reach the problem: NAND chip extraction and repair requires physical access and specialized equipment that only forensic recovery services provide. Correctly diagnosing which category applies before choosing a recovery path saves time and avoids further risk to the data.

FAQ

Q1: Why is SSD data recovery harder than HDD recovery?
A: SSDs use TRIM to proactively clear deleted data for performance reasons, which can permanently remove data much sooner than on an HDD. SSD controllers also manage wear leveling and garbage collection in ways that add complexity to any recovery attempt.

Q2: What should I do if my SSD isn’t detected at all?
A: Stop attempting to use the drive normally, since repeated connection attempts on a failing drive can worsen the underlying issue. An SSD that isn’t detected at all often points to controller failure, which is a physical recovery scenario rather than something recovery software can resolve.

Q3: Can data be recovered from a failed SSD?
A: It depends on whether the failure is logical or physical — but no recovery attempt on an SSD can guarantee success in any case. SSDs are inherently harder to recover than HDDs, and any recovery, whether software-based or lab-level, is an attempt to retrieve data, not a guaranteed outcome. Logical issues (corruption, accidental deletion, formatting) generally have better odds with software recovery, while physical issues (controller failure, NAND damage) require lab-level recovery, where the outcome depends heavily on the extent of the damage.

Q4: Is it safe to run free recovery software on my SSD?
A: For simple cases like accidental deletion, usually. But repeated scans or write-heavy tools can reduce recovery odds if the drive is already failing — when in doubt, image the drive first or seek professional help.

Q5: My SSD suddenly isn’t detected — should I keep reconnecting it to try again?
A: No. Repeated reconnection attempts can worsen a failing drive. Stop using it and consult a recovery professional, especially if reformatting or driver fixes haven’t worked.

Q7: My SSD suddenly isn’t detected — should I keep reconnecting it to try again?
A: No. Repeated reconnection attempts can worsen a failing drive. Stop using it and consult a recovery professional, especially if reformatting or driver fixes haven’t worked.

Conclusion

SSDs have changed how we think about storage — faster, more durable, and now central to both personal and professional computing. But as this guide has covered, they’re not immune to data loss, whether from software corruption, hardware wear, or simple human error.

Recovering that data comes down to correctly identifying whether the issue is logical or physical, then applying the right approach — software recovery for the former, forensic-grade tools like DRS for the latter. As SSD technology continues to evolve, so will the methods needed to recover from it, but the fundamentals covered here — backups, stopping further writes, and matching the method to the problem — remain the foundation of a successful recovery.
